MSAI - Automotive / Wire to wire / Waterproof

Product profile

Application	Automotive
Connector	Wire to wire
Familytype	Waterproof
Technology	Sealed
Pitch	4 mm
Smt	no

Spécifications

Current rating	5A AC, DC
Insulation resistance	100 MOhms min.
Temperature range	-40°C to 125°C
Number of circuits	2
Applicable wire	ATW-FEP 0.3 mm² to 0.5 mm²
Crimping press	AP-KN21MJ
Crimping applicator	APLMK SMSAS-A031-12
Compliant with rohs

Download specifications

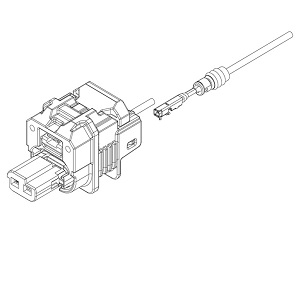

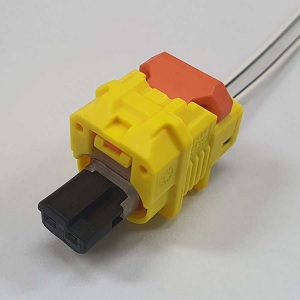

1.2 mm Sealed Connector compliant with the standard USCAR Footprint. This connector has the various colors / key codes corresponding to needs. Go/No-Go mating system: compression spring prevents half-mating. FOR INTERFACE / SEALED CONNECTOR

Description filter

0 référence

To order sample, you must LOG IN

More information use contact form

Production site

J.S.T. FRANCE S.A.S.
Z.I. Vitry Marolles B.P. 60023
51301 Vitry le François
FRANCE
Adresse email : jst@jst.fr
Tél +33 (0)3 26 72 45 03

Our certifications

Presentation from the company

JST France, electronic components manufacturer, was established in Vitry-le-François in 1989. Our plant is composed of 3 machine shops (molding, assembly and stamping) and an industrialization department. This allows us to be closer from our French customers and main European decision-makers.
We produce over-molding housings, connectors and harnesses, mainly for automotive sector. We are certified ISO/TS16949 in order to meet partners' quality requirements and to satisfy their needs. Among our electric components, we can put forward a wide variety of innovative catalog products and crimping tools: FFC/FPC connectors (insertion strength zero, no ZIF), to crimp/crossing, SMT/CMS (surface mounting), insulation displacement (IDC), board to board, board to wire, wire to wire, LED, waterproof, pitch from 0.1 to 13mm, hand tools, semi-automatic presses and applicators for all our crimp contacts.
We can also provide you with a wide range of crimp terminals (Faston, insulated, tubular, rolled/brazed, etc.), cable ends and the corresponding electric tools.
