ZWP - Connectors / Wire to wire / Waterproof

Product profile

Application	Connectors
Connector	Wire to wire
Familytype	Waterproof
Technology	Crimp
Pitch	1.5 mm
Smt	no

Spécifications

Current rating	2A AC, DC
Insulation resistance	500 MOhms min.
Temperature range	-25 to + 85 Celsius degrees
Voltage rating	50V AC, DC
Waterproof grade	IPX7
Compliant with rohs

Download specifications

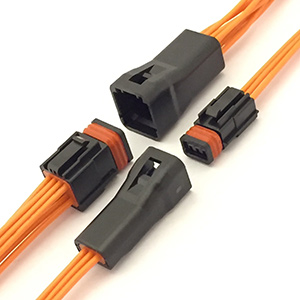

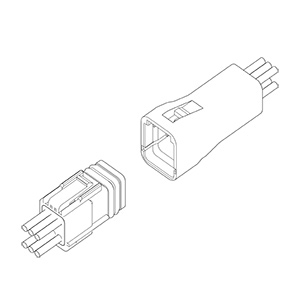

This is the waterproof type 1.5 mm pitch wire-to-wire connector incorporating the inner lock structure.

Description filter

5 références

To order sample, you must LOG IN

More information use contact form
