ZND WTW - Connectors / Wire to wire / ADAS

Product profile

Application	Connectors
Connector	Wire to wire
Familytype	ADAS
Technology	Crimp
Pitch	1.5 mm
Smt	no

Spécifications

Current rating	2A AC, DC
Insulation resistance	500 MOhms min.
Temperature range	-25Â°C to 85Â°C
Voltage rating	100V AC, DC
Number of circuits	16, 24, 32 & 40
Compliant with rohs

Download specifications

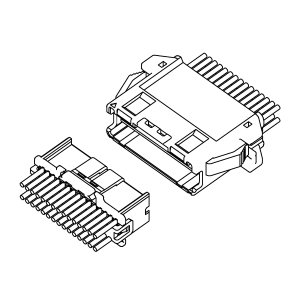

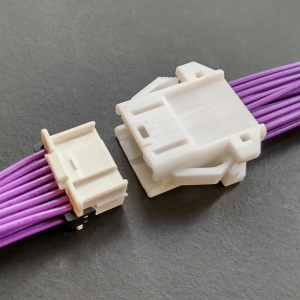

This is the 1.5 mm pitch dual-row type wire-to-wire connector with secure locking device that is correspondent to the high-density equipment design. A good mating feel makes the occurrence of incomplete mating suppressed.

Description filter

1 référence

To order sample, you must LOG IN

More information use contact form

JFPSRS-03V-EX *

Production site

J.S.T. FRANCE S.A.S.
Z.I. Vitry Marolles B.P. 60023
51301 Vitry le François
FRANCE
Adresse email : jst@jst.fr
Tél +33 (0)3 26 72 45 03

Our certifications

Presentation from the company

JST France, electronic components manufacturer, was established in Vitry-le-François in 1989. Our plant is composed of 3 machine shops (molding, assembly and stamping) and an industrialization department. This allows us to be closer from our French customers and main European decision-makers.
We produce over-molding housings, connectors and harnesses, mainly for automotive sector. We are certified ISO/TS16949 in order to meet partners' quality requirements and to satisfy their needs. Among our electric components, we can put forward a wide variety of innovative catalog products and crimping tools: FFC/FPC connectors (insertion strength zero, no ZIF), to crimp/crossing, SMT/CMS (surface mounting), insulation displacement (IDC), board to board, board to wire, wire to wire, LED, waterproof, pitch from 0.1 to 13mm, hand tools, semi-automatic presses and applicators for all our crimp contacts.
We can also provide you with a wide range of crimp terminals (Faston, insulated, tubular, rolled/brazed, etc.), cable ends and the corresponding electric tools.
