ZIM - Connectors / Wire to wire

Product profile

Application	Connectors
Connector	Wire to wire
Technology	Crimp
Pitch	1.5 mm
Smt	no

Spécifications

Current rating	2A AC, DC
Insulation resistance	500 MOhms min.
Temperature range	-25 to + 85 Celsius degrees
Voltage rating	100V AC, DC
Compliant with rohs

Download specifications

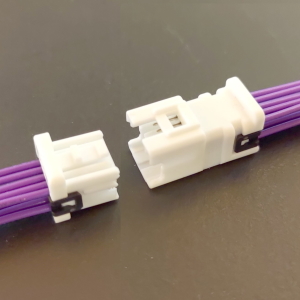

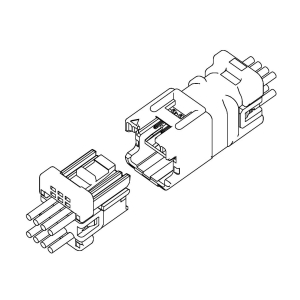

This WTW connector with 1.5mm pitch, also has a dual-row cinstruction. It's hardly affected by externl forces and prevents the lock from coming off. - Inertia loch mechanism - Retainer mountable type - Designed to improve insertion workability- Development of keying is enabled

Description filter

0 référence

To order sample, you must LOG IN

More information use contact form
