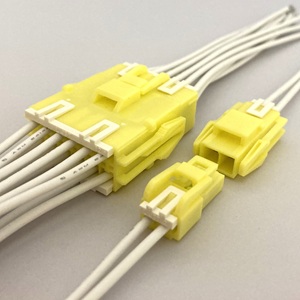

YL CONNECTOR (MEETS GLOW WIRE TESTING STANDARDS)

YL CONNECTOR (MEETS GLOW WIRE TESTING STANDARDS) - Connectors / Wire to wire

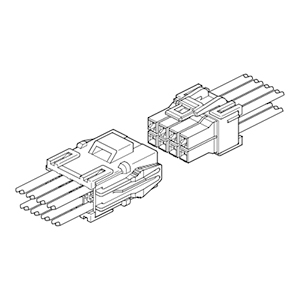

Wire to wire / YL connector (Meets glow wire testing standards) - Schema

Product profile

Application	Connectors
Connector	Wire to wire
Technology	Glow Wire
Pitch	4.5 mm
Smt	no

Spécifications

Insulation resistance	1000 MOhms min.
Temperature range	-25 to +90 Celsius degrees
Voltage rating	300V AC/DC

Download specifications

This is a 4.5 mm pitch, wire-to-wire connector that comes with glow-wire compliant housing material and allows the use of retainers.
Glow wire compliant
Retainer
Inner type housing lance
Inner lock
Panel lock

Description filter

0 référence

To order sample, you must LOG IN

More information use contact form
