XSR - IDC / Wire to Board

Product profile

Application	IDC
Connector	Wire to Board
Technology	Insulation displacement
Pitch	0.6 mm
Smt	no

Spécifications

Current rating	0.2A AC, DC
Insulation resistance	100 MOhms min.
Temperature range	-25 to + 85 Celsius degrees
Voltage rating	30V AC, DC
Compliant with rohs

Download specifications

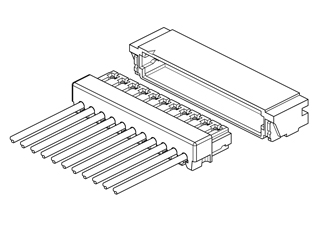

This is the world's smallest 0.6mm pitch ID connector for discrete wires. This wire-to-board miniaturised connector has a mounting height of 1.45mm and depth of 3.0mm.

Description filter

8 références

To order sample, you must LOG IN

More information use contact form
