XM CONNECTOR (MEETS GLOW WIRE TESTING STANDARDS)

XM CONNECTOR (MEETS GLOW WIRE TESTING STANDARDS) - Connectors / Wire to wire

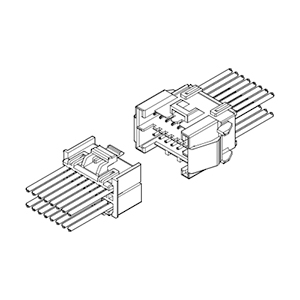

Wire to wire / XM connector (Meets glow wire testing standards) - Schema

Product profile

Application	Connectors
Connector	Wire to wire
Technology	Glow Wire
Pitch	2.5 mm
Smt	no

Spécifications

Current rating	3A AC, DC
Insulation resistance	500 MOhms min.
Temperature range	-25 to +105 Celsius degrees
Voltage rating	250V AC, DC

Download specifications

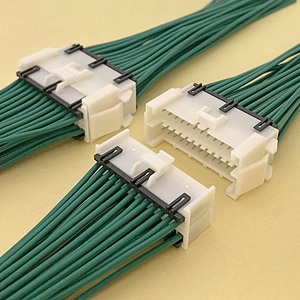

This is a 2.5 mm pitch, dual-row wire-to-wire connector that comes with glow-wire compliant housing material and allows the use of retainers, even on large circuits.

Description filter

0 référence

To order sample, you must LOG IN

More information use contact form

Production site

J.S.T. FRANCE S.A.S.
Z.I. Vitry Marolles B.P. 60023
51301 Vitry le François
FRANCE
Adresse email : jst@jst.fr
Tél +33 (0)3 26 72 45 03

Our certifications

Presentation from the company

JST France, electronic components manufacturer, was established in Vitry-le-François in 1989. Our plant is composed of 3 machine shops (molding, assembly and stamping) and an industrialization department. This allows us to be closer from our French customers and main European decision-makers.
We produce over-molding housings, connectors and harnesses, mainly for automotive sector. We are certified ISO/TS16949 in order to meet partners' quality requirements and to satisfy their needs. Among our electric components, we can put forward a wide variety of innovative catalog products and crimping tools: FFC/FPC connectors (insertion strength zero, no ZIF), to crimp/crossing, SMT/CMS (surface mounting), insulation displacement (IDC), board to board, board to wire, wire to wire, LED, waterproof, pitch from 0.1 to 13mm, hand tools, semi-automatic presses and applicators for all our crimp contacts.
We can also provide you with a wide range of crimp terminals (Faston, insulated, tubular, rolled/brazed, etc.), cable ends and the corresponding electric tools.
