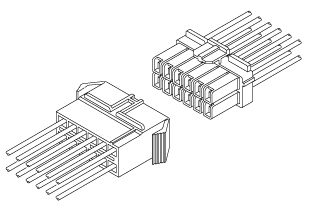

XL (W TO W) - Connectors / Wire to wire

Product profile

Application	Connectors
Connector	Wire to wire
Technology	Crimp
Pitch	5.0 mm
Smt	no

Spécifications

Current rating	10A AC, DC
Insulation resistance	1000 MOhms min.
Temperature range	-25øC to 90øC
Voltage rating	300V AC, DC
Number of circuits	2, 4, 8, 12 & 16
Applicable wire	AWG #26 to #16
Applicable panel thickness	0.7 to 2.4mm
Hand tool	YC-251/YC-252
Crimping press	AP-KN21MJ
Compliant with rohs

Download specifications

The box-shaped contacts serve as socket contacts in a wide variety of applications from low-voltage, low-current signal circuits to power s
The box-shaped contacts serve as socket contacts in a wide variety of applications from low-voltage, low-curr
