XCC - Card / Board to Board / Memory

Product profile

Application	Card
Connector	Board to Board
Familytype	Memory
Technology	CF Express card (B type) / XQD Card
Pitch	0
Smt	no

Spécifications

Current rating	1.2A AC, DC / 0.51A AC, DC
Insulation resistance	1000 MOhms min.
Temperature range	-25 to + 85 Celsius degrees

Download specifications

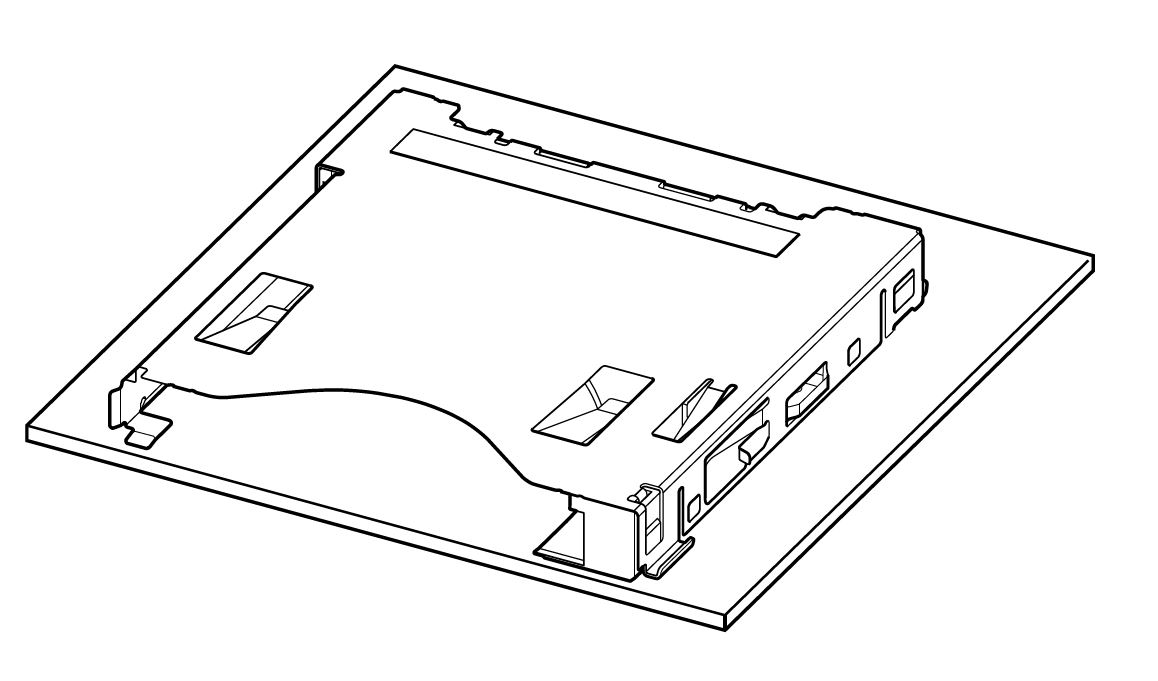

This is a card push type connector designed for CF Express card (B type) and XQD card. Designed for CF Express & XQD Card / Stable transmission characteristics & conforming to CF Express 1.0 / PCle 3.0 / Card eject system: card push method/ With the prevention mechanism for the card pop-out

Description filter

0 référence

To order sample, you must LOG IN

More information use contact form
