Application | Connectors |
Connector | Wire to wire |
Technology | Crimp |
Pitch | 2.5 mm |
Smt | no |
Current rating | 3A AC, DC |
Insulation resistance | 500 MOhms min. |
Temperature range | -25°C to 85°C |
Voltage rating | 250V AC, DC |
Number of circuits | 2 to 15 |
Applicable wire | AWG #28 to #20 |
Hand tool | WC-692 / YRS-692 |
Crimping press | AP-KN21MJ |
Compliant with rohs |

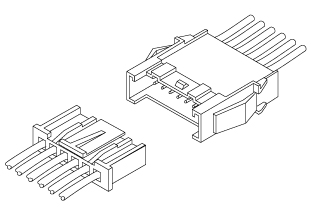

2.5mm pitch wire-to-wire connector that can mate with the socket of XA connector (board-to-wire type). Reliable secondary retainer is available. Panel mount is applicable.
