VL HIGH CURRENT TYPE (WTW) - Connectors / Wire to wire / ADAS

Wire to wire / VL HIGH CURRENT TYPE (WTW)

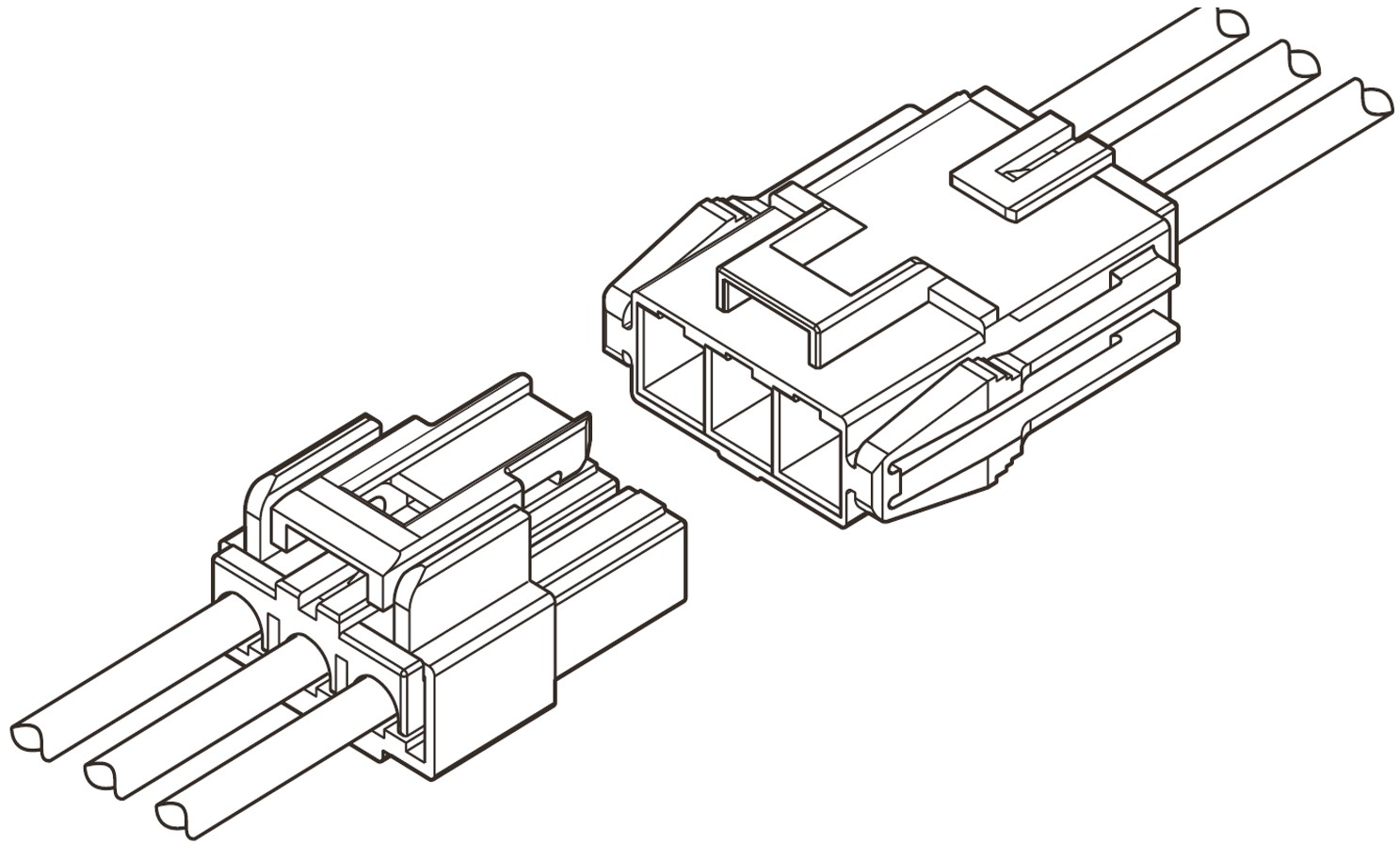

Wire to wire / VL HIGH CURRENT TYPE (WTW) - Schema

Product profile

Application	Connectors
Connector	Wire to wire
Familytype	ADAS
Technology	Crimp
Pitch	6.2
Smt	no

Spécifications

Current rating	23A AC, DC
Insulation resistance	1000 MOhms min.
Temperature range	-25Â°C to 90Â°C
Voltage rating	600V AC, DC
Number of circuits	1, 2, 3 & 4
Applicable wire	AWG #20 to #12

Download specifications

This WTB VL connector is 6.2mm pitch, designed for large current. It's suitable for the large electric current, which has been realized by using higly-conducting material, so it enables the large current circuit connection.> Housing lances > Retainer > Suited for large current > Compatible for both WTW & WTB connections.

Description filter

4 références

To order sample, you must LOG IN

More information use contact form
