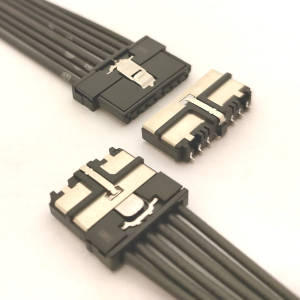

ULH CONNECTOR ECPA TYPE - Automotive / Wire to Board

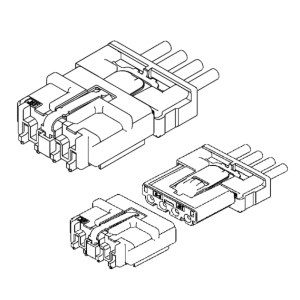

Wire to Board / ULH connector eCPA Type - Schema

Product profile

Application	Automotive
Connector	Wire to Board
Technology	Industry
Pitch	2.0 mm
Smt	no

Spécifications

Current rating

5A AC, DC

Download specifications

This SMT connector that achieves the world's smallest class connector height of 3.5 mm as a crimped specification while having performance that meets the in-vehicle standards USCAR-2 and LV214. Electrical CPA type provides unprecedented connection reliability by providing incomplete mating detection function.

Description filter

0 référence

To order sample, you must LOG IN

More information use contact form
