UBC - Interface Connection / Wire to Board / Input/Output

Product profile

Application	Interface Connection
Connector	Wire to Board
Familytype	Input/Output
Technology	USB
Pitch	0
Smt	no

Spécifications

Current rating	1.5A AC, DC
Insulation resistance	100 MOhms min.
Temperature range	-25 to + 85 Celsius degrees
Voltage rating	20V AC, DC
Compliant with rohs

Download specifications

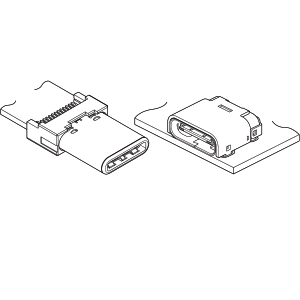

This connector is an interface connector conforming to USB (Universal Serial bus) Type-C. High-speed transmission of up to 10Gbps and power supply of up to 100W are available.It has a reversible construction, so that insertion and extraction without having to worry about the orientation (both sides) of the plug is possible.

Description filter

2 références

To order sample, you must LOG IN

More information use contact form
