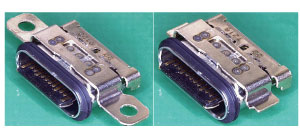

UBC CONNECTOR (USB3.2 TYPE-C WATERPROOF) - Connectors / Wire to Board / Input/Output

Wire to Board / UBC connector (USB3.2 Type-C Waterproof)

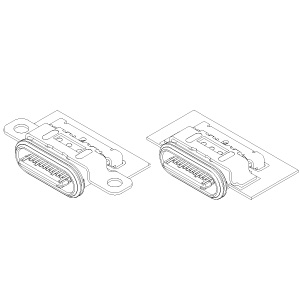

Wire to Board / UBC connector (USB3.2 Type-C Waterproof) - Schema

Product profile

Application	Connectors
Connector	Wire to Board
Familytype	Input/Output
Technology	USB
Pitch	0
Smt	no

Spécifications

Insulation resistance	100 MOhms min.
Temperature range	-25 to + 85 Celsius degrees
Voltage rating	20 VAC
Waterproof grade	IPX8

Download specifications

This UBC series is a waterproof type interface connector with an IPX8 rating for ingress protection per JIS C 9020 Protection Grade8. Reversible structure that can be inserted regardless of front or back orientation of the plug, and power supply up to maximum of 100W.

Description filter

0 référence

To order sample, you must LOG IN

More information use contact form
