UB MINI-B - Interface Connection / Wire to Board / Input/Output

Product profile

Application	Interface Connection
Connector	Wire to Board
Familytype	Input/Output
Technology	USB
Pitch	Others
Smt	no

Spécifications

Applicable pc board thickness	1.0 to 1.2 mm
Current rating	1A AC, DC
Insulation resistance	1000 MOhms min.
Temperature range	-55Â°C to 85Â°C
Voltage rating	30V AC, DC
Compliant with rohs

Download specifications

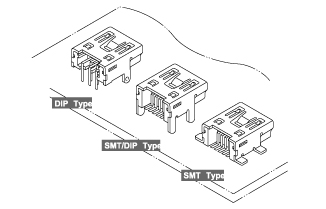

The USB 2.0 certified receptacle is quite suitable for the interface of the small and miniaturized PC-peripheral products as Digital Cameras and MP3 Players.

Description filter

4 références

To order sample, you must LOG IN

More information use contact form
