TLDR - Automotive / Wire to Board / High voltage

Product profile

Application	Automotive
Connector	Wire to Board
Familytype	High voltage
Technology	Industry
Pitch	3.5 mm
Smt	no

Spécifications

Current rating	5A AC, DC
Temperature range	-40 to +125 Celsius degrees
Voltage rating	600V AC, DC

Download specifications

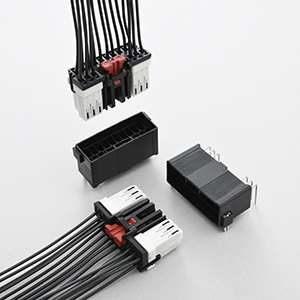

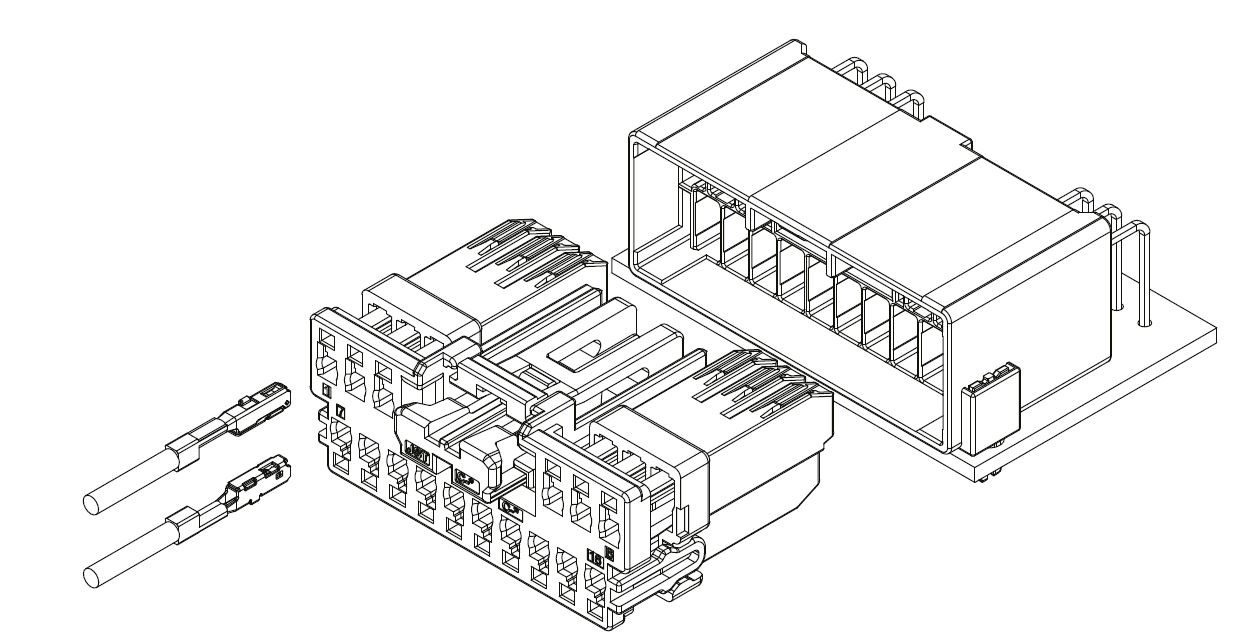

0.64 low profileautomotive connector for High Voltage & low current applications. Terminal secondary lock & CPA function / Individual chamberApplicable wire: ISO6722-1, 0.35mmÂ² to 0.5mmÂ² (AWG #22 to #20)

Description filter

2 références

To order sample, you must LOG IN

More information use contact form
