TBX - Solderless Terminals / Solderless Terminals / Large Current

Product profile

Application	Solderless Terminals
Connector	Solderless Terminals
Familytype	Large Current
Technology	One-Touch Connecting
Pitch	0
Smt	no

Spécifications

Current rating	50A AC, DC
Insulation resistance	1000 MOhms min.
Temperature range	-25 to + 85 Celsius degrees
Voltage rating	600V AC, DC

Download specifications

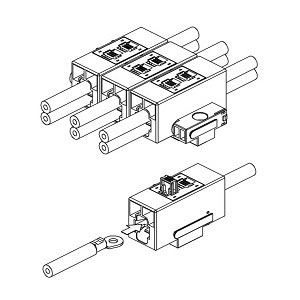

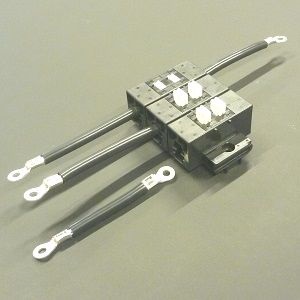

TBX Connector is a screwless terminal block suitable for large current applications.he thermoplastic resin housing block has two retainers on the top,which eliminate the need for screws to hold the terminal in place, and the problem with open connections from loose screws.The retainer is released by prising open with a flat headed screwdriver.Each end of the housing has two slots (four per block) where the JST crimped Ring Terminal (R8-5) is inserted.

Description filter

0 référence

To order sample, you must LOG IN

More information use contact form

Production site

J.S.T. FRANCE S.A.S.
Z.I. Vitry Marolles B.P. 60023
51301 Vitry le François
FRANCE
Adresse email : jst@jst.fr
Tél +33 (0)3 26 72 45 03

Our certifications

Presentation from the company

JST France, electronic components manufacturer, was established in Vitry-le-François in 1989. Our plant is composed of 3 machine shops (molding, assembly and stamping) and an industrialization department. This allows us to be closer from our French customers and main European decision-makers.
We produce over-molding housings, connectors and harnesses, mainly for automotive sector. We are certified ISO/TS16949 in order to meet partners' quality requirements and to satisfy their needs. Among our electric components, we can put forward a wide variety of innovative catalog products and crimping tools: FFC/FPC connectors (insertion strength zero, no ZIF), to crimp/crossing, SMT/CMS (surface mounting), insulation displacement (IDC), board to board, board to wire, wire to wire, LED, waterproof, pitch from 0.1 to 13mm, hand tools, semi-automatic presses and applicators for all our crimp contacts.
We can also provide you with a wide range of crimp terminals (Faston, insulated, tubular, rolled/brazed, etc.), cable ends and the corresponding electric tools.
