SQZ - Automotive / Wire to Board / Airbag

Product profile

Application	Automotive
Connector	Wire to Board
Familytype	Airbag
Technology	Industry
Pitch	0
Smt	no

Spécifications

Current rating	3A AC, DC
Insulation resistance	100 MOhms min.
Temperature range	-40 to +85 Celsius degrees
Compliant with rohs

Download specifications

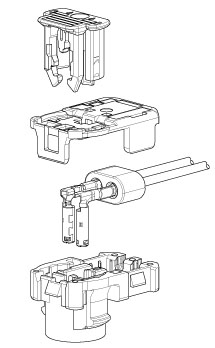

Conforming to ISO 19072-4. Shorter than SQXW connector in total length. Intelligent CPA enables connector locking, prevent incomplete matind & release of short circuit at the same time. Mate with retainer designed by ISO 19072-4.Connector performance satisfies ISO 19072-2. Terminal has 3 contacts points. Prevent the deformation of contact area by covering ferrule to contact spring. Ferrite core provides simple & reliable noise suppression characteristics.

Description filter

0 référence

To order sample, you must LOG IN

More information use contact form
