Product profile
| Application | Connectors |
| Connector | Wire to Board |
| Familytype | Small equipement |
| Technology | Crimp |
| Pitch | 1.25 mm |
| Smt | no |
Spécifications
| Current rating | 1A AC, DC |
| Insulation resistance | 100 MOhms min. |
| Temperature range | -25 to +85 Celsius degrees |
| Voltage rating | 130V AC, DC |

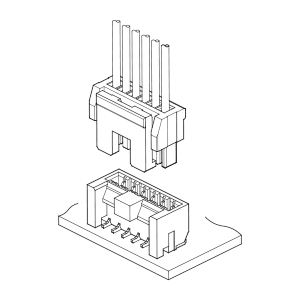

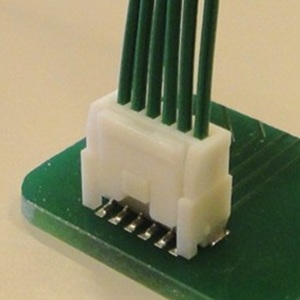

This space-saving 1.25 mm pitch wire-to-board connector comes with a secure locking system and is designed for high-density internal connections throughout all types of electrical and electronic equipment.
The header has a dedicated flat surface for vacuum pickup, enabling automated assembly sing embossed tape packaging, without the need for an adhesive tape backing for the pick and place machine.
