RWZ CONNECTOR (POWER SUPPLY SYSTEM STRUCTURE REINFORCED TYPE)

RWZ CONNECTOR (POWER SUPPLY SYSTEM STRUCTURE REINFORCED TYPE) - Connectors / Wire to wire

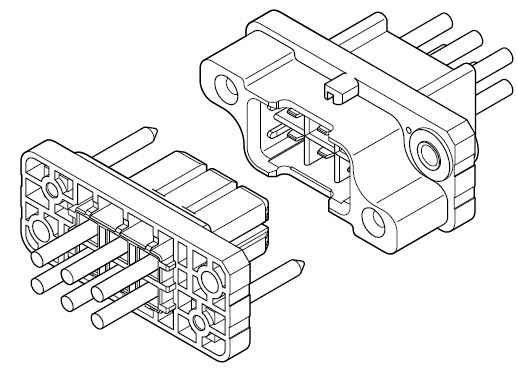

Wire to wire / RWZ connector (Power supply system structure reinforced type) - Schema

Product profile

Application	Connectors
Connector	Wire to wire
Technology	Crimp
Pitch	0
Smt	no

Spécifications

Current rating	15A AC, DC
Insulation resistance	500 MOhms min.
Temperature range	-25 to + 85 Celsius degrees
Voltage rating	250V AC, DC

Download specifications

This is the power supply system drawer connector which realized excellent toughness and durability by performing the secure guide and positioning when mating with assembled metal pin to the receptacle.In addition to the ease of robust design of the connection in equipment, provide safety and security.

Description filter

3 références

To order sample, you must LOG IN

More information use contact form
