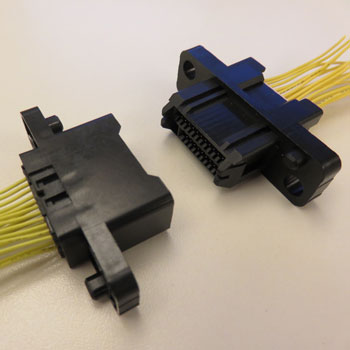

RWM - Connectors / Wire to wire

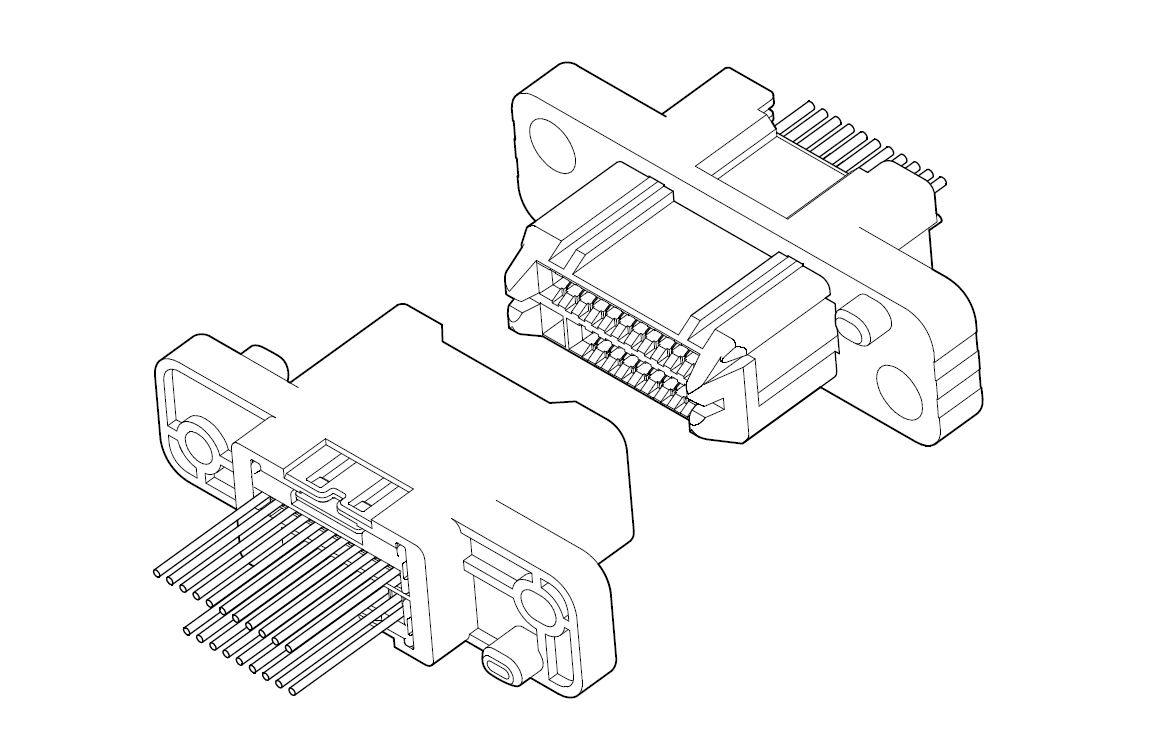

Wire to wire /  RWM - Schema

Product profile

ApplicationConnectors
ConnectorWire to wire
TechnologyCrimp
Pitch1.5 mm
Smtno

Spécifications

Current rating1A AC, DC
Insulation resistance500 MOhms min.
Temperature range-25øC to 85øC
Voltage rating50V AC, DC
Number of circuits9, 11 & 20
Applicable wireAWG #26
Crimping pressAP-KN21MJ
Crimping applicatorMKS-L-10-3

It's a dual row type drawer connector with combined signal to connect the units and absorbs misalignment between units. This is drawer connector suitable for the place which is few in insertion and withdrawal cycles.
