RVE - Connectors / Wire to wire

Wire to wire /  RVE - Schema

Product profile

ApplicationConnectors
ConnectorWire to wire
TechnologyCrimp
Pitch0
Smtno

Spécifications

Current ratingSignal circuit 1A AC, DC Power supply circuit 15A AC, DC
Insulation resistance500 MOhms min.
Temperature range-25øC to 85øC
Voltage ratingSignal circuit 50V AC, DC Power supply circuit 250V AC, DC

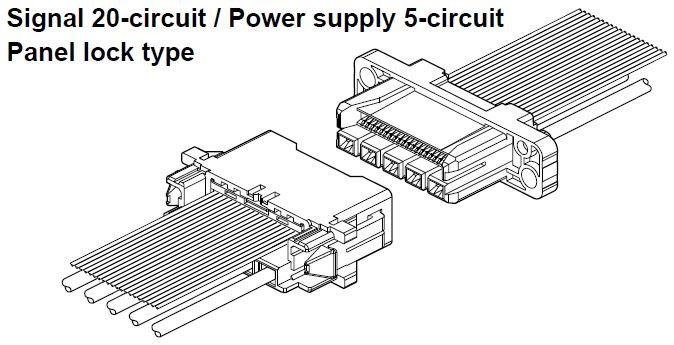

Number of circuitsSignal Circuit: 7, 11 & 20 / Power Supply: 3, 4 & 5
Applicable wireAWG #24 to #14

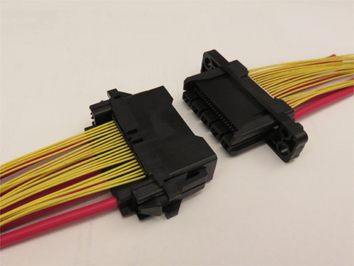

This connector is a hybrid type drawer connector to connect the unit, absorbs misalignment between units, and it is possible to install with panel lock on plug side.This is drawer connector suitable for the place which is few in insertion and withdrawal cycles.

Description filter


3 références

To order sample, you must LOG IN
More information use contact form
