RSXA - Connectors / Wire to wire / RAST

Product profile

Application	Connectors
Connector	Wire to wire
Familytype	RAST
Technology	Insulation displacement
Pitch	2.5 mm
Smt	no

Spécifications

Current rating	4A AC, DC max (AWG#22)
Insulation resistance	1000 MOhms min.
Temperature range	-40Â°C to 105Â°C
Voltage rating	250V AC, DC max
Applicable wire	UL AWM 1007/1569

Download specifications

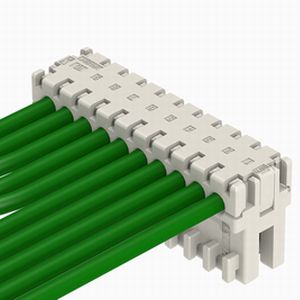

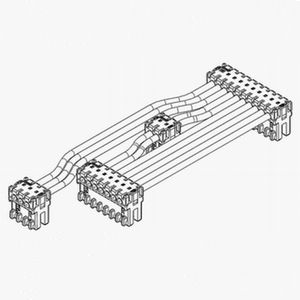

This connector is 2.5 mm pitch card-edge type insulation displacement connector. ã»Conform with RAST 2.5 standard ã»IDC (Insulation displacement connection) with twin U-slot contact design to provide extra stability. ã»Various polarizing features, keying option & locking features available.

Description filter

0 référence

To order sample, you must LOG IN

More information use contact form
