RIY - Connectors / Wire to wire

Product profile

Application	Connectors
Connector	Wire to wire
Technology	Crimp
Pitch	0
Smt	no

Spécifications

Current rating	Signal circuit 2A AC, DC Power supply circuit 15A AC, DC
Insulation resistance	1000 MOhms min.
Temperature range	-25øC to 85øC
Voltage rating	Signal circuit 50V AC, DC Power supply circuit 250V AC, DC
Number of circuits	Signal Circuit: 7 / Power Supply: 3
Applicable wire	AWG #28 to #14

Download specifications

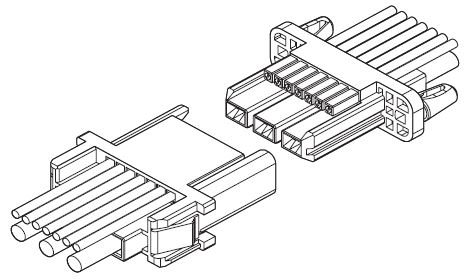

This connector is a hybrid type double-row drawer connector with combined signal and power supply circuits to connect the units. In the signal part, the number of parts reduced by connecting the crimping contact directly.

Description filter

2 références
