Product profile
| Application | Connectors |
| Connector | Wire to wire |
| Familytype | High Current |
| Technology | Crimp |
| Pitch | 1.25 mm |
| Smt | no |
Spécifications
| Current rating | Signal line/ 1.0A AC/DC (AWG#26) |
| Insulation resistance | 500 MOhms min. |
| Temperature range | -25 to +85 Celsius degrees |
| Voltage rating | Signal line/ 50V AC/DC |

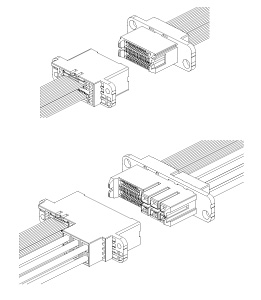

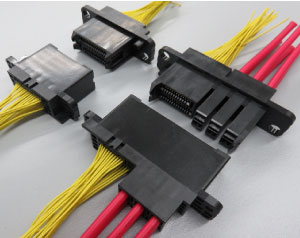

With an in-unit connection, the RGX series is offered as both a signal type and a hybrid type drawer connector with combined signal and power lines. Misalignment is absorbed between units with exceptional durability against insertion and withdrawalforces.Improvements in the contact structure allows for enhanced contact reliability.
