PW CONNECTOR (TYPE B, WIRE-TO-WIRE) - Connectors / Wire to wire / Power

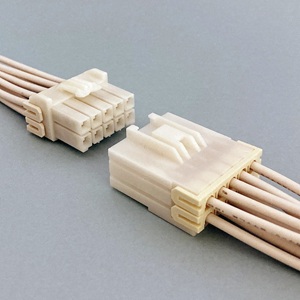

Wire to wire / PW connector (Type B, Wire-to-Wire)

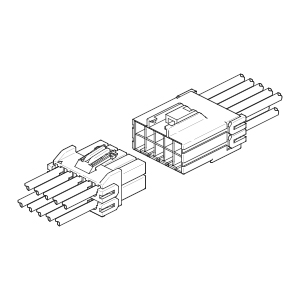

Wire to wire / PW connector (Type B, Wire-to-Wire) - Schema

Product profile

Application	Connectors
Connector	Wire to wire
Familytype	Power
Technology	Glow Wire
Pitch	3.96 mm
Smt	no

Spécifications

Current rating	7A AC, DC
Insulation resistance	1000 MOhms min.
Temperature range	-40 to +105 Celsius degrees
Voltage rating	250V AC, DC

Download specifications

This is a 3.96 mm pitch wire-to-wire connector with a retainer-mountable housing made from Glow Wire test-compliant material.
Circuits : from 3 to 15
Housing lance system
Retainer
Secure lock mechanism
Free-hanging

Description filter

0 référence

To order sample, you must LOG IN

More information use contact form
