PW CONNECTOR (TYPE B, WIRE-TO-BOARD) - Connectors / Wire to Board / Power

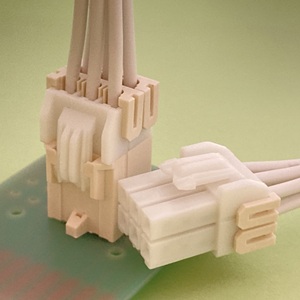

Wire to Board / PW connector (Type B, Wire-to-Board)

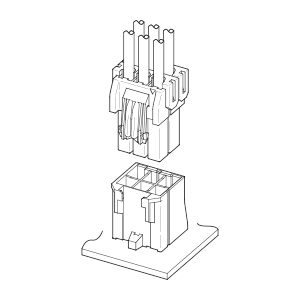

Wire to Board / PW connector (Type B, Wire-to-Board) - Schema

Product profile

Application	Connectors
Connector	Wire to Board
Familytype	Power
Technology	Glow Wire
Pitch	3.96 mm
Smt	no

Spécifications

Current rating	8A AC, DC
Insulation resistance	1000 MOhms min.
Temperature range	-40 to +105 Celsius degrees
Voltage rating	250V AC, DC

Download specifications

This is a 3.96 mm pitch wire-to-board connector with a retainer-mountable housing made from Glow Wire test-compliant material.
Housing lance system
Retainer
Secure lock mechanism
Polarization boss
