PJD - Connectors / Wire to Board

Product profile

Application	Connectors
Connector	Wire to Board
Technology	Crimp
Pitch	2.0 mm
Smt	no

Spécifications

Current rating	3A AC, DC
Insulation resistance	1000 MOhms min.
Temperature range	-25 to + 85 Celsius degrees
Voltage rating	250V AC, DC

Download specifications

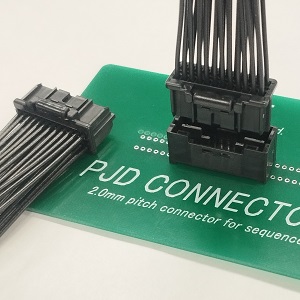

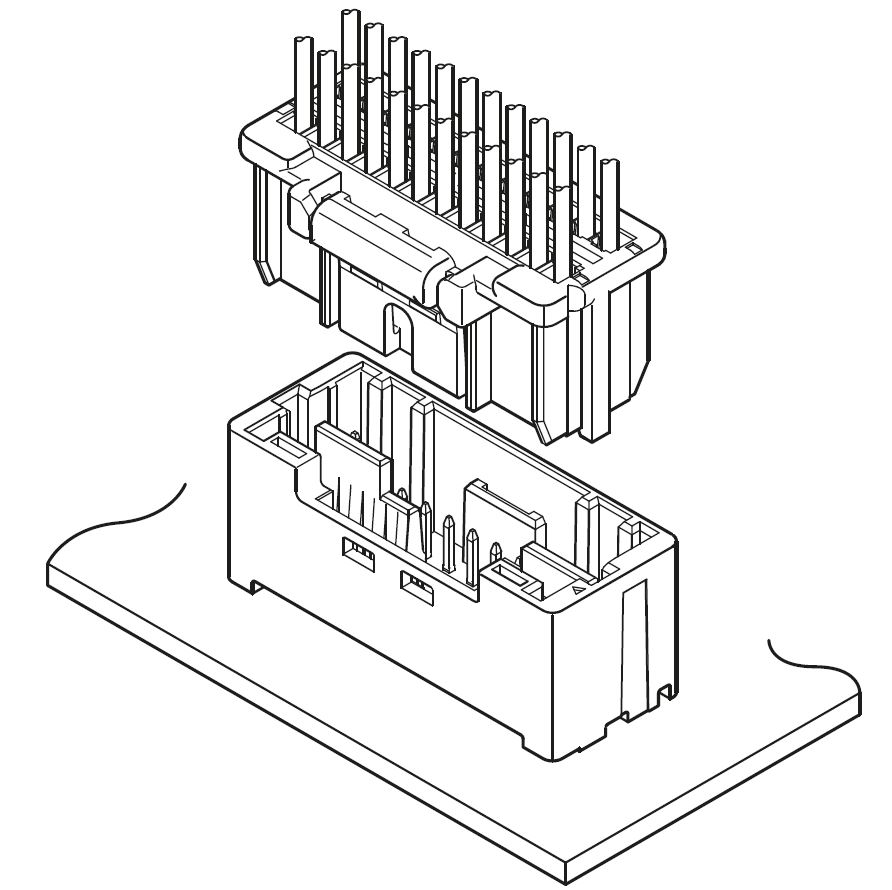

Dual-row, wire-to-board connector features a secure locking system and low insertion force contacts which allow for improved workability in equipment assembly lines. The mating lengths on the header side of the ground and signal/power pins are different in length to provide a mating phase differential of 2.4 mm. This enables a reliable sequence in the insertion & withdrawal process when connecting the header to the socket while improving circuit protection and safety of electronic equipme

Description filter

0 référence

To order sample, you must LOG IN

More information use contact form
