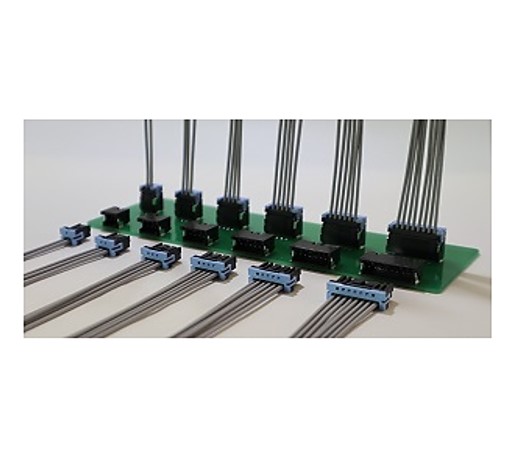

PAMU CONNECTOR - Automotive / Wire to Board

Product profile

Application	Automotive
Connector	Wire to Board
Pitch	2.0 mm
Smt	no

Spécifications

Current rating	AWG#26 : 1A AC, DC
Insulation resistance	100 MOhms min.
Temperature range	-40Â°C to 125Â°C
Number of circuits	2, 3, 4, 5, 6 & 8
Applicable wire	Conductor AWG#26: Coating OD 1.30mm

Download specifications

Available in various fields as a MU (multi-use) connector with a mix o automotive & consummer characteristics. - 2mm pitch, SMT type , miniaturized connector for signal - Half mating prevention structure - Small size yet, stable contact resistanceeven under high temperatures & vibrations in automotive standards

Description filter

1 référence

To order sample, you must LOG IN

More information use contact form

BM02B-PAMUK-A-TB *
