NSH POTTING - Connectors / Wire to Board / Potting

Product profile

Application	Connectors
Connector	Wire to Board
Familytype	Potting
Technology	Crimp
Pitch	1.0 mm
Smt	no

Spécifications

Current rating	1A AC, DC
Insulation resistance	100 MOhms min.
Temperature range	-25 to + 105 Celsius degrees
Voltage rating	50V AC, DC

Download specifications

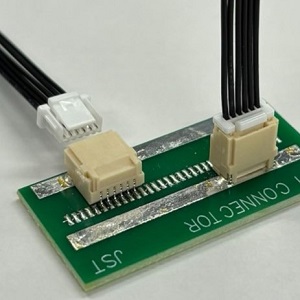

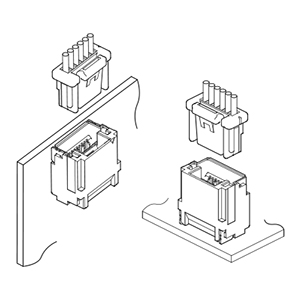

This is a 1.0 mm pitch, wire-to-board, SMT connector designed for ingress protection against potting material on the PCB. This potting-compatible version of the NSH connector features a strong locking function and delivers a noticeable click feeling during insertion. Together with low-insertion force contacts, the NSH connector facilitates a reliable mating operation. NÂ° of circuits : 2 to 10.

Description filter

0 référence

To order sample, you must LOG IN

More information use contact form
