Product profile
| Application | Connectors |
| Connector | Wire to wire |
| Technology | Crimp |
| Pitch | 1.0 mm |
| Smt | no |
Spécifications
| Current rating | 1A AC, DC |
| Insulation resistance | 100 MOhms min. |
| Temperature range | -25 to + 105 Celsius degrees |
| Voltage rating | 50V AC, DC |

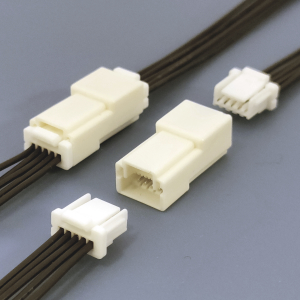

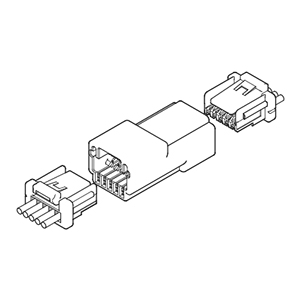

This is a 1.0 mm pitch, single row, wire-to-wire adapter for 1-N wire configurations, allowing two NSH cable connectors to join together. The basic mating structure is the same as that of the existing NSH connector for Wire-to-Board connections, providing stable mechanical and electrical performance. N° of circuits : 5
