MWT - Automotive / Wire to wire / Waterproof

Product profile

Application	Automotive
Connector	Wire to wire
Familytype	Waterproof
Technology	Sealed
Pitch	0
Smt	no

Spécifications

Current rating	3.5A AC, DC / 7.5A AC, DC
Insulation resistance	100 MOhms min.
Temperature range	-40øC to 105øC
Number of circuits	6
Applicable wire	AVSS 0.3mmý, 0.5mmý
Crimping applicator	APLMK SMWTS-A021-064 / APLMK SMWTWS-A021-064

Download specifications

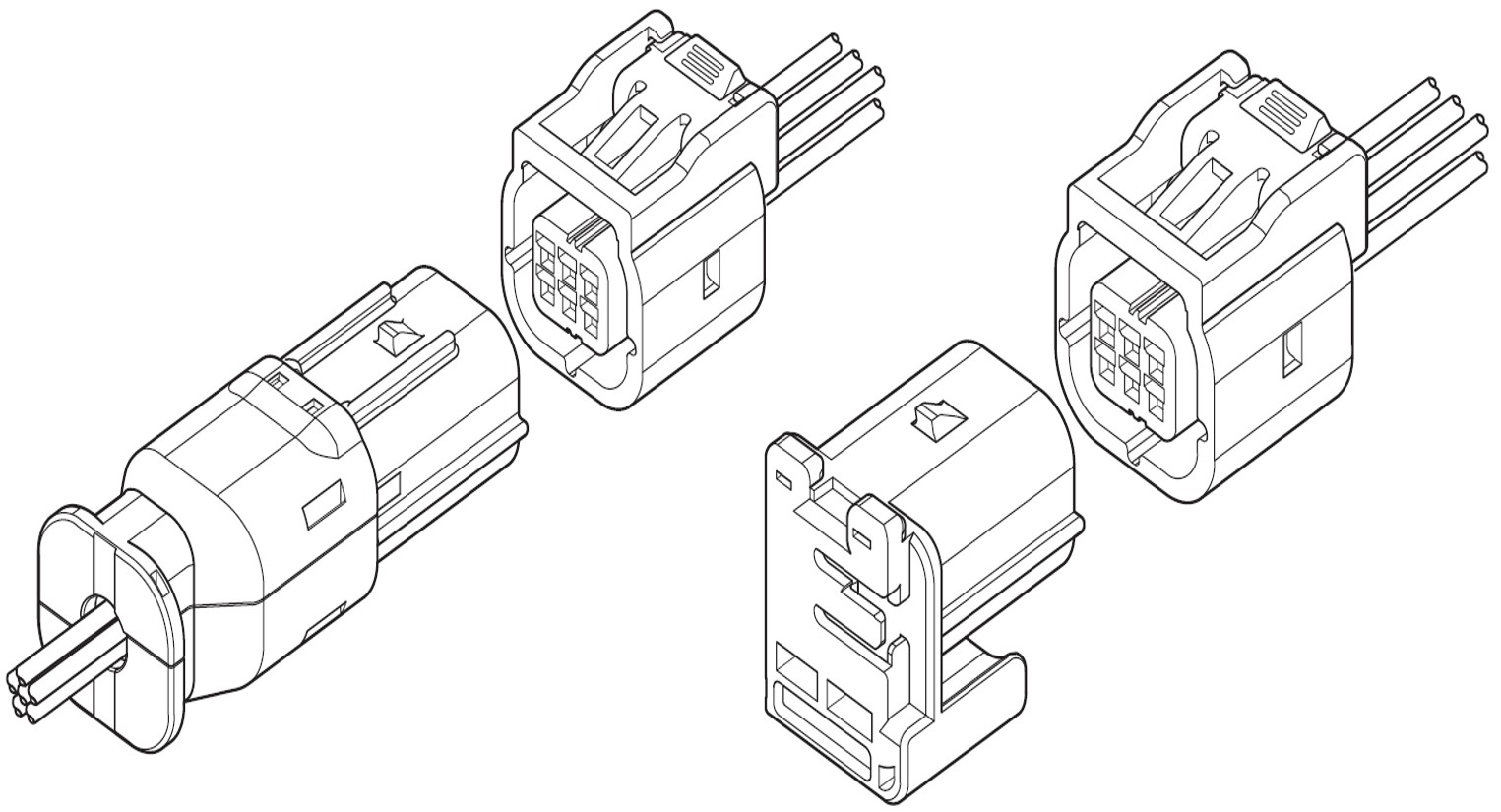

Compliant with the ISO 19689, 0.64mm individual waterproof, 6 pole WTW connection connector. The retainer is a pre-set type for both female and male housing.Protection cover to female connector from water and dust is selectable to the installation direction.

Description filter

9 références

To order sample, you must LOG IN

More information use contact form
