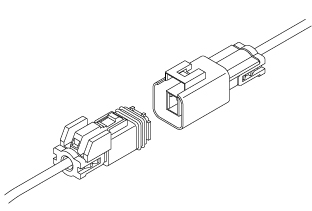

MWP - Connectors / Wire to wire / Waterproof

Product profile

Application	Connectors
Connector	Wire to wire
Familytype	Waterproof
Technology	Sealed
Pitch	7.0 mm
Smt	no

Spécifications

Current rating	7A AC, DC
Insulation resistance	1000 MOhms min.
Temperature range	-40°C to 105°C
Voltage rating	300V AC, DC
Number of circuits	1 & 2
Applicable wire	AWG #26 to #18
Waterproof grade	IPX4
Hand tool	YC-500 / WC-550
Crimping press	AP-KN21MJ
Compliant with rohs

Download specifications

The low insertion force contacts reduce surface finish wear and reduce the effects of stress relaxation.
Housing lances
The inner-housing lock secures the plug to the receptacle and prevents accidental disconnection.
