MJ - Interface Connection / Wire to Board / Input/Output

Product profile

Application	Interface Connection
Connector	Wire to Board
Familytype	Input/Output
Technology	Modular Jack
Pitch	Others
Smt	no

Spécifications

Applicable pc board thickness	1.6 mm 2.4 mm
Current rating	1.3A AC, DC
Insulation resistance	1000 MOhms min.
Temperature range	-40°C to 80°C
Voltage rating	250V AC, DC
Number of circuits	2 to 6
Compliant with rohs

Download specifications

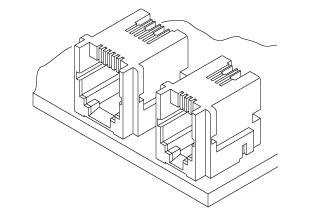

The MJ connector has an upper conta
The MJ connector has an upper contact point design. With this construction, the contact points are free from dust even before the connector is mated with the modular plug.
The MJ connector has metal hooks, which provides click feeling when mounted on a PC board, and are soldered later.
