LEI CONNECTOR - Connectors / Board to Board / LED

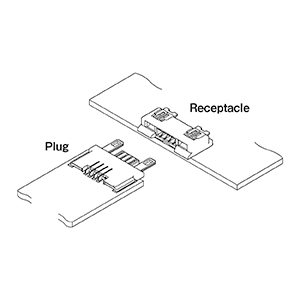

Board to Board /  LEI connector - Schema

Product profile

ApplicationConnectors
ConnectorBoard to Board
FamilytypeLED
TechnologyLED technology
Pitch1 mm
Smtno

Spécifications

Current ratingContact A: 1.0A AC/DC | Contact B: 3.0A AC/DC
Insulation resistance100 MOhms min.
Temperature range-25 to +85 Celsius degrees
Voltage rating150V AC/DC

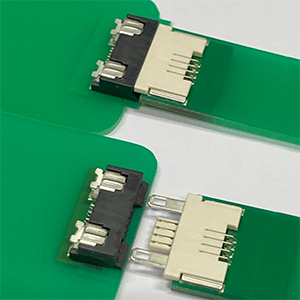

The LEI connector is a staggered horizontal board-to-board type interconnect for coplanar applications. It can accommodate mating misalignment and features a robust metal lock.
With a low-profile height of only 2.4 mm and excellent mating reliabilityit is ideal for applications such as connecting LED backlight boards in LCD televisions.

Description filter


0 référence

To order sample, you must LOG IN
More information use contact form
