LEB - Connectors / Board to Board / LED

Board to Board /  LEB - Schema

Product profile

ApplicationConnectors
ConnectorBoard to Board
FamilytypeLED
TechnologyLED technology
Pitch4.0 mm
Smtyes

Spécifications

Current rating3A AC, DC
Insulation resistance1000 MOhms min.
Temperature range-55øC to 105øC
Voltage rating300V AC, DC
Number of circuits1 & 2
Applicable wireAWG #26 to #22

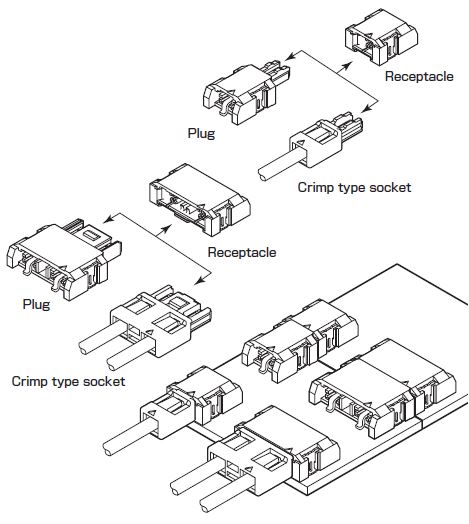

Considering about luminescence property of LED device, this LEB connector is designed as low profile type connector (height: 2.7mm) for LED lighting, and achieves the space saving.The horizontal connection between PCBs enables and the mechanism of absorbing the PCB misalignment has been installed considering the parallel use for the connector.
