JUX - Connectors / Board to Board

Product profile

Application	Connectors
Connector	Board to Board
Technology	Industry
Pitch	0.6 mm
Smt	no

Spécifications

Applicable pc board thickness	1.6 mm
Current rating	0.5A AC, DC
Insulation resistance	50 MOhms min.
Temperature range	-25 to + 85 Celsius degrees
Voltage rating	50V AC, DC
Compliant with rohs

Download specifications

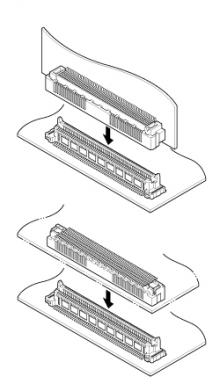

This connector is small 0.6mm pitch double-row board-to-board connector for high density mounting. This plug is available in top and side entry type to choose either connection type depending on its usage.

Description filter

3 références

To order sample, you must LOG IN

More information use contact form
