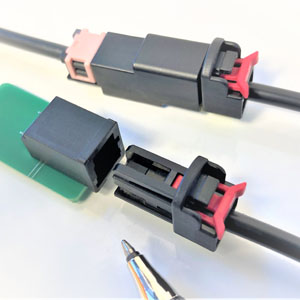

JRE WTW - Automotive / Wire to wire / Communication

Product profile

Application	Automotive
Connector	Wire to wire
Familytype	Communication
Technology	High Speed Transmission
Pitch	0
Smt	no

Spécifications

Current rating	3A max. (0.13-0.22sq)
Insulation resistance	100 MOhms min.
Temperature range	-40°C to 105°C
Applicable wire	UTP wire cable (Contact JST for details)
Compliant with rohs

Download specifications

Fully compatible and designed based on requirements from the Open Alliance TC9 (1000BASE-T1) for telematics and Automotive communications technology. - Non-Waterproof - High speed data transmission - Prevents Half mating CPA - Through Hole reflow

Description filter

0 référence

To order sample, you must LOG IN

More information use contact form
