JKGN - Connectors / Board to Board / For FPC

Board to Board /  JKGN - Schema

Product profile

ConnectorBoard to Board
FamilytypeFor FPC
Pitch0.35 mm


Current rating0.5A AC, DC
Insulation resistance100 MOhms min.
Temperature range-25°C to 85°C
Voltage rating30V AC, DC
Number of circuits40 & 90

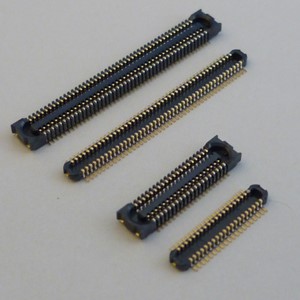

0.35 mm pitch BTB FPC connection connector with mounting height 1.0mm, product width 2.88mm. Contact lock mechanism for secure high retention force. 2 points contact provide high reliability. Secure wiring space at the bottom of the contact. Powersaving by 0.5A/pin. Clear click feeling when mating.
