JFA J300 (W TO W 5.4 MM) - Connectors / Wire to wire

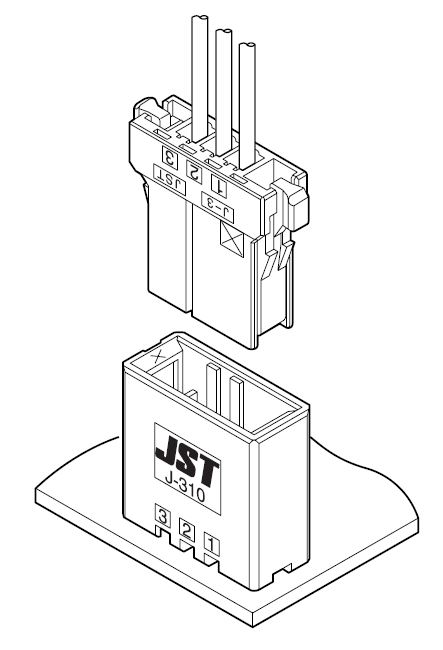

Wire to wire /  JFA J300 (W to W 5.4 mm) - Schema

Product profile

ApplicationConnectors
ConnectorWire to wire
TechnologyCrimp
Pitch5.4
Smtno

Spécifications

Current rating8.5A AC, DC / 7A AC, DC / 5.5A AC, DC / 4A AC, DC
Insulation resistance1000 MOhms min.
Temperature range-55øC to 105øC
Voltage rating600V AC, DC
Number of circuits30 & 40
Applicable wireAWG #28 to #14

By taking the advantage of low insertion force of JFA connector, only the simple construction of a housing and contacts provides the collective connection of multi-circuit of power supply line.

Description filter


14 références
