JFA J300 (J-FAT SPRING) - Power / Wire to Board / Power

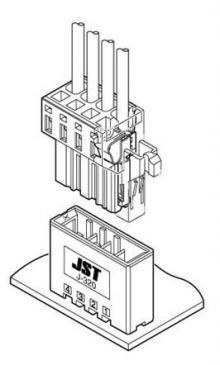

Wire to Board / JFA J300 (J-FAT spring) - Schema

Product profile

Application	Power
Connector	Wire to Board
Familytype	Power
Technology	Crimp
Pitch	5.08 mm
Smt	no

Spécifications

Temperature range	-55°C to 105°C
Voltage rating	300V AC, DC
Number of circuits	3 to 6
Applicable wire	AWG #18 to #14
Compliant with rohs

Download specifications

No crimp tool is necessary. Mating with the JFA J320S/J320M
