HYV - Connectors / Wire to Board

Wire to Board /  HYV - Schema

Product profile

ApplicationConnectors
ConnectorWire to Board
TechnologyCrimp
Pitch5.0
Smtno

Spécifications

Applicable pc board thickness1.6 mm
Current rating10A AC, DC
Insulation resistance1000 MOhms min.
Temperature range-30°C to 105°C
Voltage rating300V AC, DC
Number of circuits2 to 6
Applicable wireAWG #22 to #16

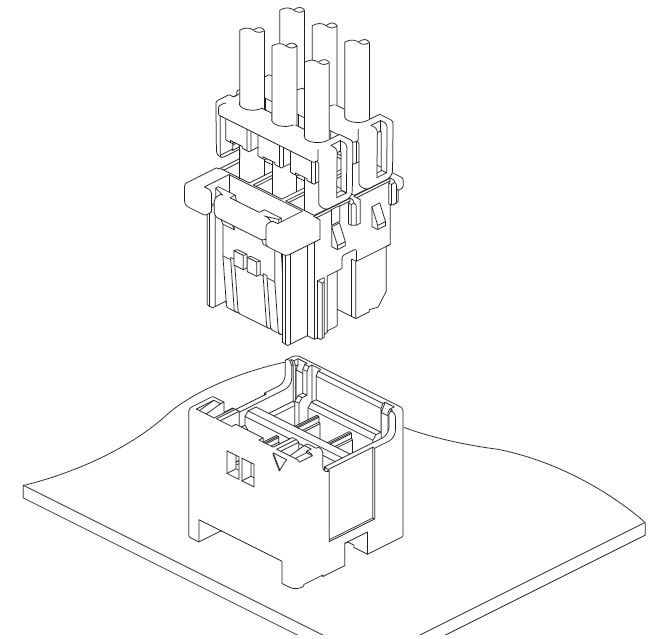

This HYV connector is 5.0 mm pitch wire-to-board type connector and has the mechanism to suppress the incomplete mating in mating operation. Box-shaped contact to prevent the influence by external forces, therebyincreasing safety of large current circuit connection. 4 type key patterns prevents mismatching insertion when using multiple pieces connector in the same model.
