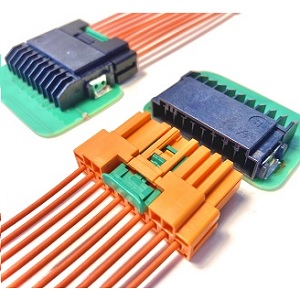

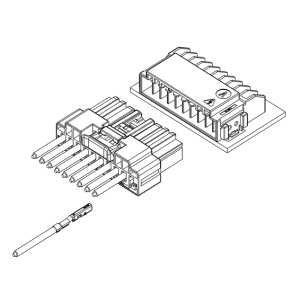

HVM - Automotive / Wire to Board / High voltage

Product profile

Application	Automotive
Connector	Wire to Board
Familytype	High voltage
Pitch	3.5 mm
Smt	no

Spécifications

Current rating	5A AC, DC max
Insulation resistance	200 MOhms min.
Temperature range	-40Â°C to 125Â°C (Gold plated)
Applicable wire	0.3 mmÂ² to 0.5 mmÂ² (High voltage cable)
Rated voltage	1 000V AC, DC

Download specifications

Developed in pursuit of withstanding high voltage, miniaturization and low profile as Surface Mounting Type connector for Automotive. To realize the withstanding voltage and miniaturization by flange strucutre and pitch 3.5mm design.

Description filter

0 référence

To order sample, you must LOG IN

More information use contact form

Production site

J.S.T. FRANCE S.A.S.
Z.I. Vitry Marolles B.P. 60023
51301 Vitry le François
FRANCE
Adresse email : jst@jst.fr
Tél +33 (0)3 26 72 45 03

Our certifications

Presentation from the company

JST France, electronic components manufacturer, was established in Vitry-le-François in 1989. Our plant is composed of 3 machine shops (molding, assembly and stamping) and an industrialization department. This allows us to be closer from our French customers and main European decision-makers.
We produce over-molding housings, connectors and harnesses, mainly for automotive sector. We are certified ISO/TS16949 in order to meet partners' quality requirements and to satisfy their needs. Among our electric components, we can put forward a wide variety of innovative catalog products and crimping tools: FFC/FPC connectors (insertion strength zero, no ZIF), to crimp/crossing, SMT/CMS (surface mounting), insulation displacement (IDC), board to board, board to wire, wire to wire, LED, waterproof, pitch from 0.1 to 13mm, hand tools, semi-automatic presses and applicators for all our crimp contacts.
We can also provide you with a wide range of crimp terminals (Faston, insulated, tubular, rolled/brazed, etc.), cable ends and the corresponding electric tools.
