HM - Connectors / Wire to wire

Product profile

Application	Connectors
Connector	Wire to wire
Technology	Crimp
Pitch	2.5 mm
Smt	no

Spécifications

Current rating	3A AC, DC
Insulation resistance	500 MOhms min.
Temperature range	-25°C to 85°C
Voltage rating	250V AC, DC
Number of circuits	2, 3, 4, 8 & 12
Applicable wire	AWG #26 to #22
Applicable panel thickness	0.8 to 1.6mm
Hand tool	YC-580R / YRS-580
Crimping press	AP-KN21MJ
Compliant with rohs

Download specifications

Matable with HR receptacles
Both crMatable with HR receptacles

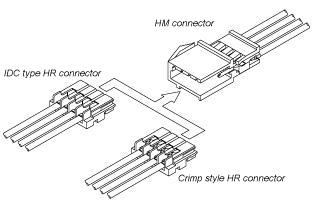

Both crimp style and insulation displacement HR connector receptacles can be accommodated by the HM connector.
Housing lances
Mountable on panels of various thickness without using tools.The contacts are individually and totally surrounded by housing walls.
