HIC - Automotive / Wire to wire / Spring lock type

Product profile

Application	Automotive
Connector	Wire to wire
Familytype	Spring lock type
Technology	Industry
Pitch	2.2 mm
Smt	no

Spécifications

Current rating	5A AC, DC
Insulation resistance	100 MOhms min.
Temperature range	-40 to +100 Celsius degrees
Voltage rating	14V AC, DC
Compliant with rohs

Download specifications

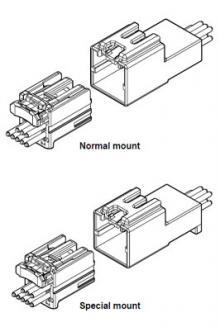

This wire-to-wire connector for air-bag has CPA, which allows locking the connector, incomplete mating detection and release of short-circuit at the same time.

Description filter

8 références

To order sample, you must LOG IN

More information use contact form
