GEZ - Connectors / Wire to Board / Small equipement

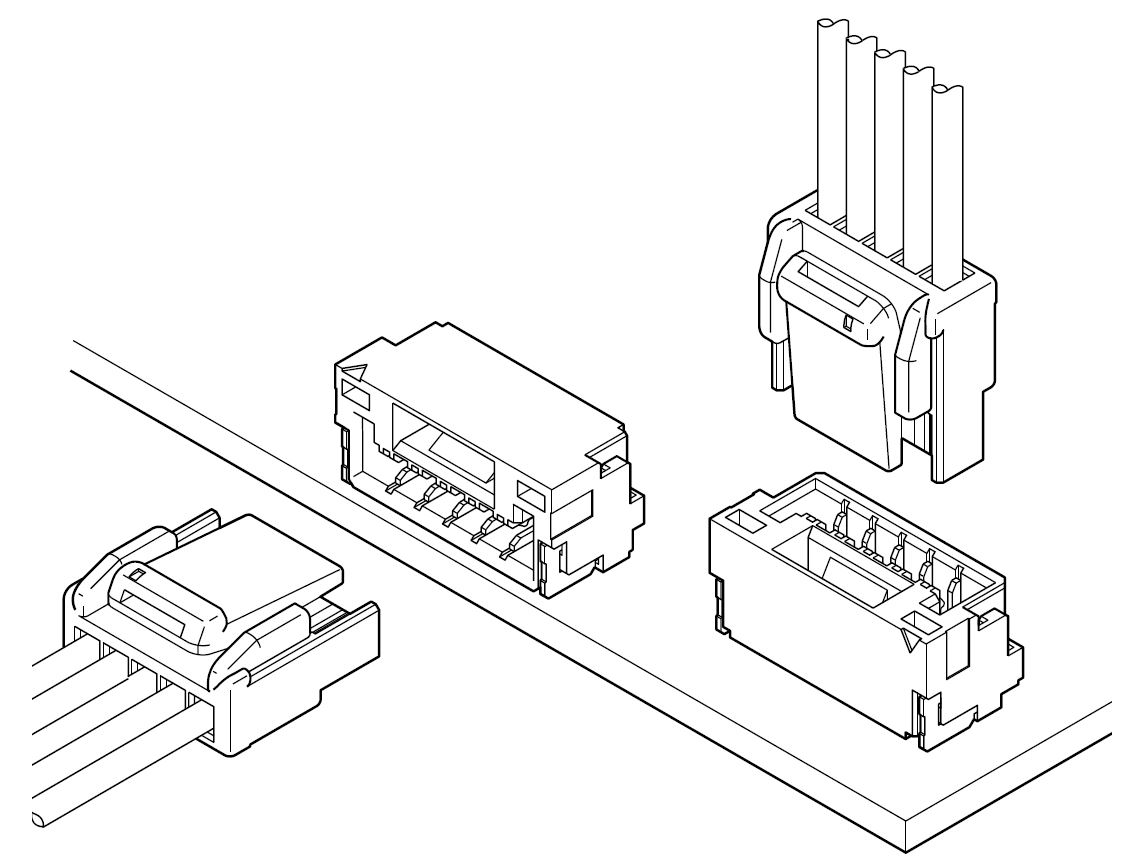

Wire to Board /  GEZ - Schema

Product profile

ApplicationConnectors
ConnectorWire to Board
FamilytypeSmall equipement
TechnologyCrimp
Pitch1.25 mm
Smtno

Spécifications

Current rating1.5A AC, DC / 1A AC, DC / 0.8A AC, DC
Insulation resistance100 MOhms min.
Temperature range-25øC to 85øC
Voltage rating50V AC, DC
Number of circuits2 to 15
Applicable wireAWG #30 to #26
Crimping pressAP-KN21MJ
Crimping applicatorMKS-L-10-3

GEZ connector has been developed for market of Pachislot & Pachinko machine. This connector contact is interchangeable with the Dual row type GEZD connector & this low insertion force type contact enables connector mating operation easier.
