GERD - Connectors / Wire to Board

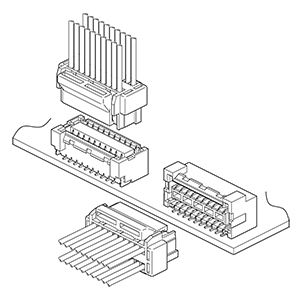

Wire to Board /  GERD - Schema

Product profile

ApplicationConnectors
ConnectorWire to Board
TechnologyCrimp
Pitch1.25 mm
Smtno

Spécifications

Current rating1.5A AC, DC / 1A AC, DC / 0.8A AC, DC
Insulation resistance100 MOhms min.
Temperature range-25øC to 85øC
Voltage rating50A AC, DC
Number of circuits10 to 40
Applicable wireAWG #30 to #26

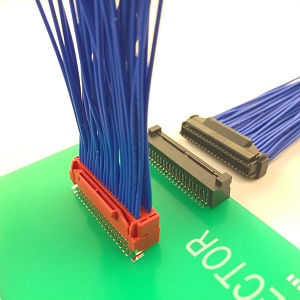

To correspond to the high-density PCB design, this connector is designed as a 1.25mm pitch, Dual-Row type. The full line-up from 10 to 40 circuits for top & side entry types is provided. Its operability is very well, despite the small size connectorwith tin-plated. Secure lock structure / Low insertion force / Withdrawal forces / Prevention of contact deformation / Suction area secured on header / Mismating prevention mechanism
