FVCM - FFC/FPC / Wire to Board / For FFC/FPC

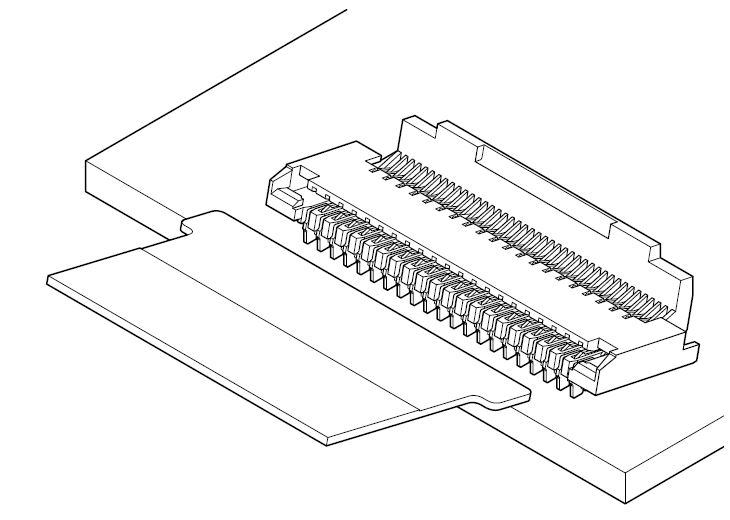

Wire to Board /  FVCM - Schema

Product profile

ApplicationFFC/FPC
ConnectorWire to Board
FamilytypeFor FFC/FPC
TechnologyZIF
Pitch0.2 mm
Smtyes

Spécifications

Current rating0.2A AC, DC
Insulation resistance50 MOhms min.
Temperature range-25øC to 85øC
Voltage rating50V AC, DC
Number of circuits41 & 51
Applicable fpcConductor pitch: 0.2mm / Cond. width: 0.2mm / Mating part thickness: 0.2 +- 0.03mm

This FVCM connector is the first mid-flip 0.2mm pitch connector for FPC in the connector industry. It is designed for the use of multi polarization, operability and both upper and lower contacts.Moreover, it inherits from tilt type, and it improves the freedom of design for placing at the PCB dramatically.
