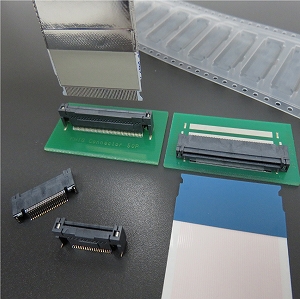

FHTG - Connectors / Wire to Board / For FFC/FPC

Product profile

Application	Connectors
Connector	Wire to Board
Familytype	For FFC/FPC
Technology	NON-ZIF
Pitch	0.5 mm
Smt	no

Spécifications

Current rating	0.5A AC, DC
Insulation resistance	50 MOhms min.
Temperature range	-25 to + 85 Celsius degrees
Voltage rating	50V AC, DC

Download specifications

By providing a unique lock mechanism for confirming the mating, it is possible to insert the FFC with one action & pull out the FFC without unlocking, realizing good workability.

Description filter

3 références

To order sample, you must LOG IN

More information use contact form
