FHN - FFC/FPC / Wire to Board / For FFC/FPC

Product profile

Application	FFC/FPC
Connector	Wire to Board
Familytype	For FFC/FPC
Technology	NON-ZIF
Pitch	0.5 mm
Smt	no

Spécifications

Current rating	0.5A AC, DC
Insulation resistance	500 MOhms min.
Temperature range	-25 to + 85 Celsius degrees
Voltage rating	50V AC, DC

Download specifications

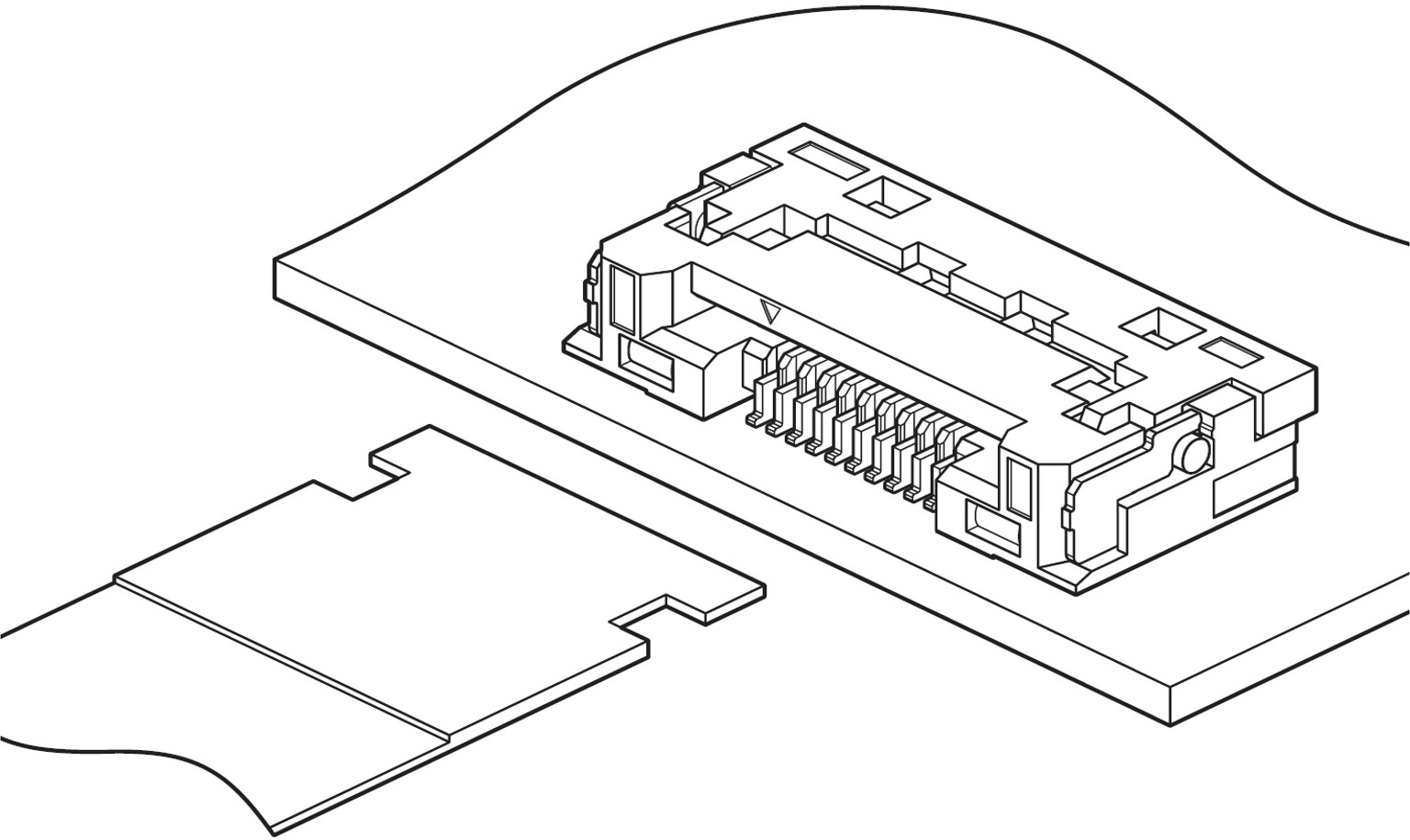

Auto-locking mechanism that has secure & good workability. Back flip mechanism that has a superior operability of cover housing. Operability similar to that of the conventional flip lock type when unlocking.The structure is trong enough for routing FFC/FPC. The insertion completion of FFC/FPC can be confirmed visually from the square hole of the connector upper surface.

Description filter

1 référence

To order sample, you must LOG IN

More information use contact form

08FHN-RSM1-A-GAN-TF *
